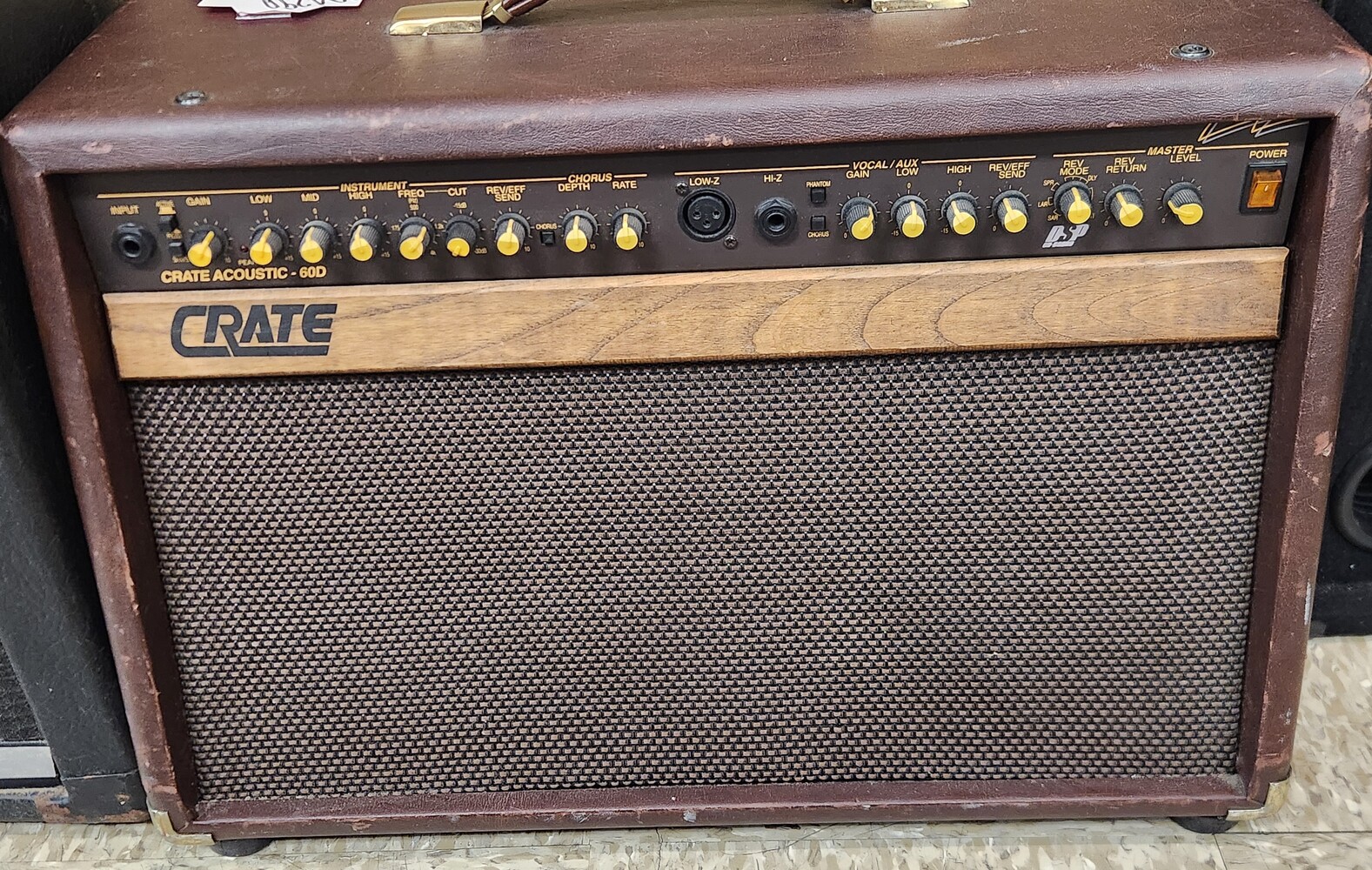

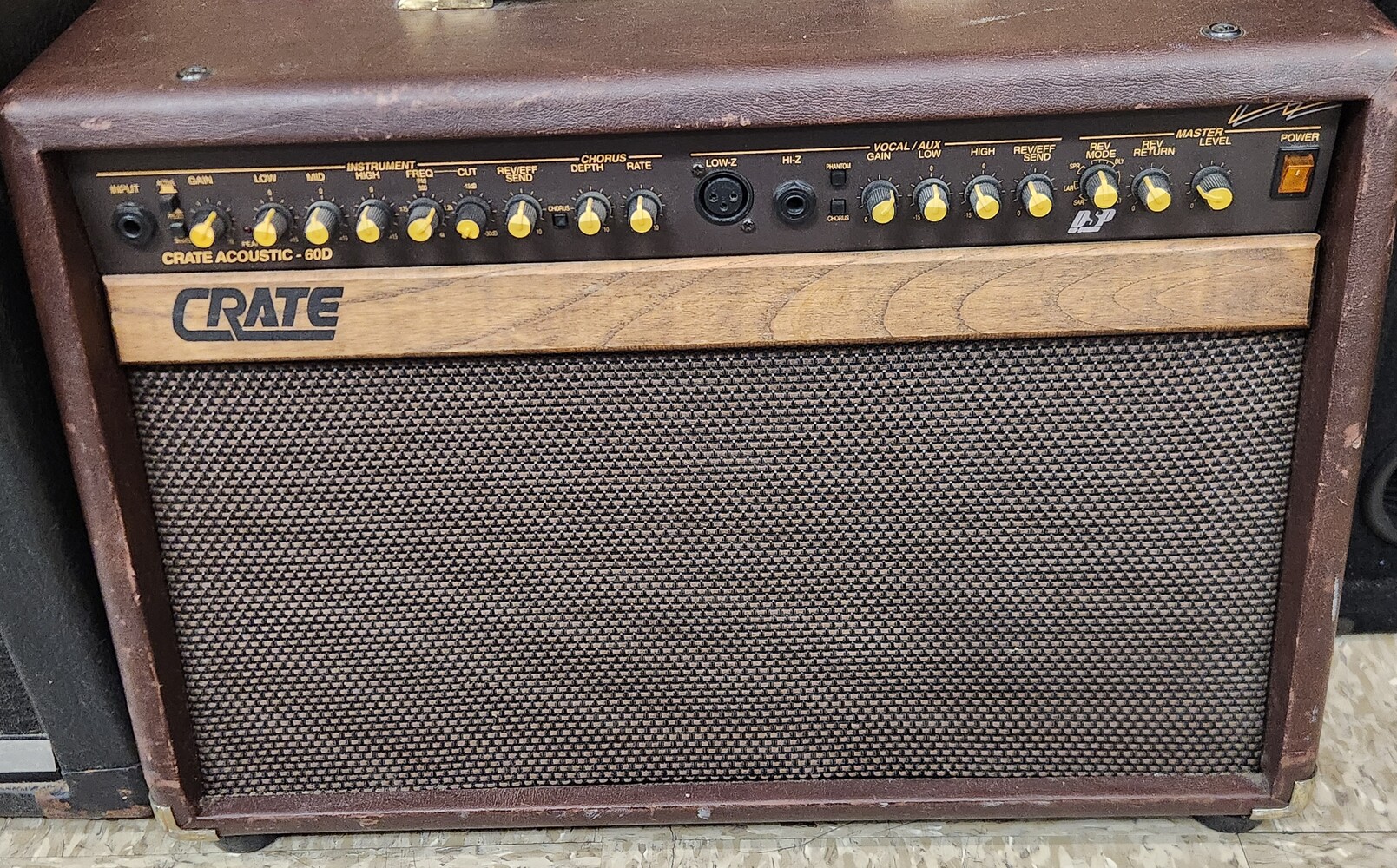

Crate CA60D 2-Channel Acoustic Guitar Amplifier Amp

• Works great!

Designed to provide studio quality sound from any instrument, each Crate Acoustic amp adds clarity, power, and intuitive controls, while maintaining natural acoustic tone. The CA60 features 2 x 30 watts RMS, twin Crate 6.5 in. high fidelity speakers, and a Crate special design tweeter. Two channels with 1/4 in. and XLR input allow for instrument, vocal, or an aux. input of your choice, like CD player or another instrument. Crate's patented feedback elimination circuit helps players "notch out" unwanted tonal anomalies which tend to create feedback in a live situation. The CA60 also includes slant front cabinet, 3 band EQ, chorus with control, and effects send.

Output Power Rating: 60 watts RMS total system power

Internal Amp: 2 x 30 watts RMS @ 1% THD

Instrument Channel: Low +/-15dB @ 80Hz; High +/-15dB @ 10kHz; Shape -25db @ 600Hz

Instrument Channel - Input Impedance: 25k ohm (Active), 2.2M ohm (Piezo)

Instrument Channel - Input Sensitivity: 22mV RMS (Actv), 9mV RMS (Pzo)

Instrument Channel - Sens. to Eff Send/Line Out: 70mV

Instrument Channel - Max Input Signal: 6v RMS (17v peak to peak)

Instrument Channel - Feedback Elimination: Freq variable from 80Hz to 4kHz; Cut variable from -0 to -30db

Vocal/Aux Channel Low +/-15dB @ 80Hz; High +/-15dB @ 10kHz

Vocal/Aux Channel - Input Impedance: 3k ohm (Lo-Z), 20k ohm (Hi-Z)

Vocal/Aux Channel - Input Sensitivity: 3mV RMS (LZ), 15mV RMS (HZ)

Vocal/Aux Channel - Sens. to Eff Send/Line Out: 9mV (LZ), 50mV (HZ)

Vocal/Aux Channel - Max Input Signal: 10v RMS (28v peak to peak)

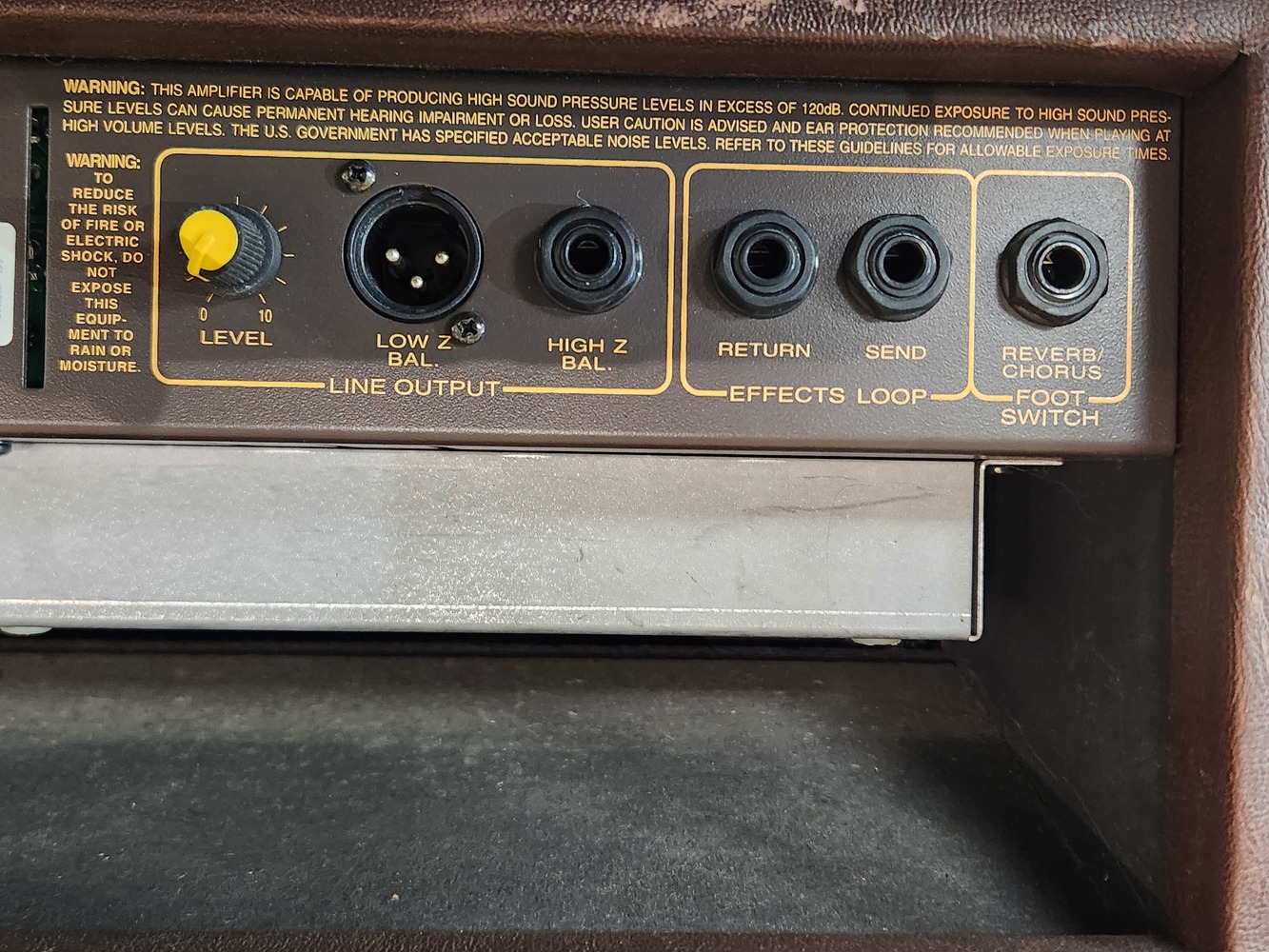

Effects Loop: Line Out 1v RMS, Line In 1v RMS

Eff Return to Line Out Sensitivity: 50mV

Eff Return to Line Out Sensitivity: 50mV

Eff Return Input Impedance: 11k ohm

Eff Send Output Impedance: 2.2k ohm

Line Out Output Impedance: 220 ohm (Lo-Z), 2.2k ohm (Hi-Z)

Internal Woofers: 2 x 6-1/4 in. w/polypropylene cones, rubber surrounds, 17.7oz magnet, 1 in. voice coil, 4 ohms, 50w RMS, 95dB 1w 1m

Internal Tweeter: High efficiency Piezo, 110dB 1w 1m

Internal Crossover: Passive Type

Power Requirements: 120VAC, 60Hz, 60VA; 100/115VAC, 50/60Hz, 60VA; 230VAC, 50/60Hz, 60VA

Size: (H x W x D): 13.5 in H x 21.18 in. x 10.25 in.
Weight: 38 lbs.
