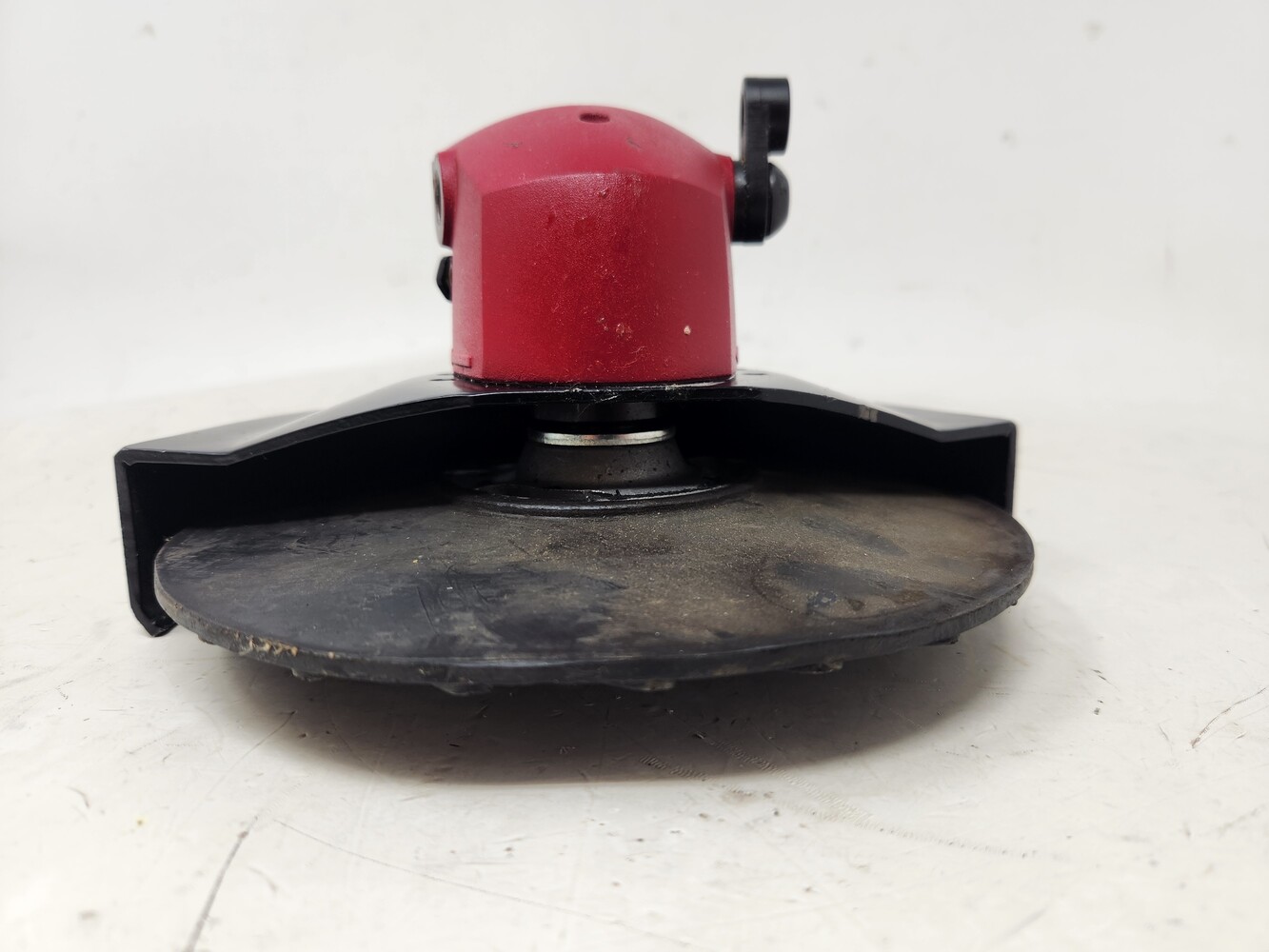

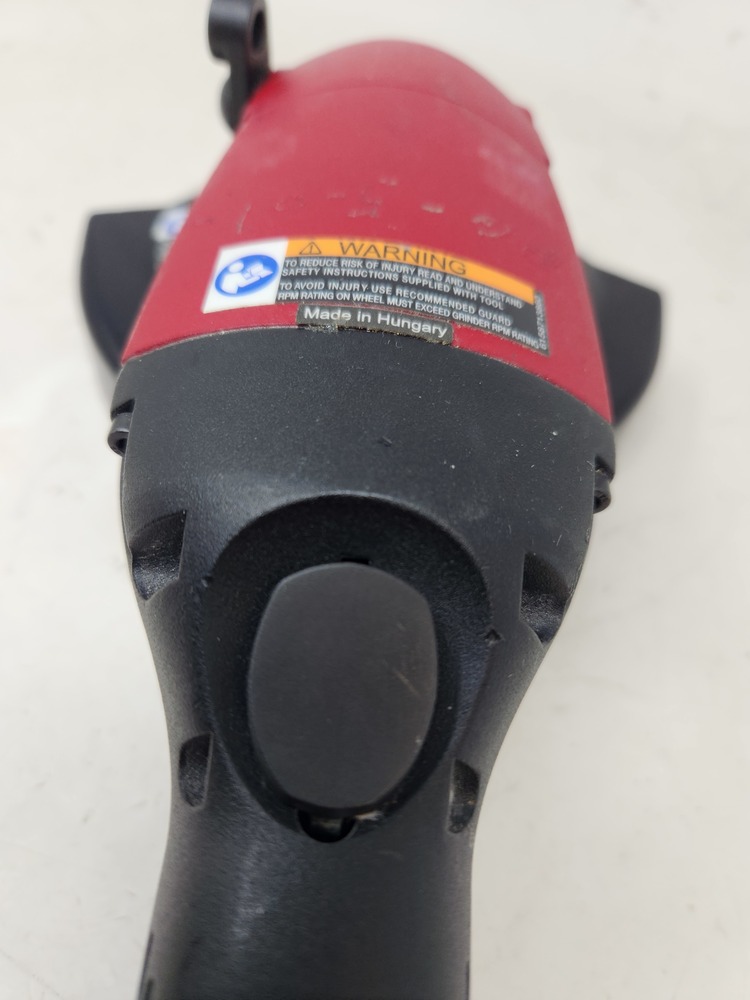

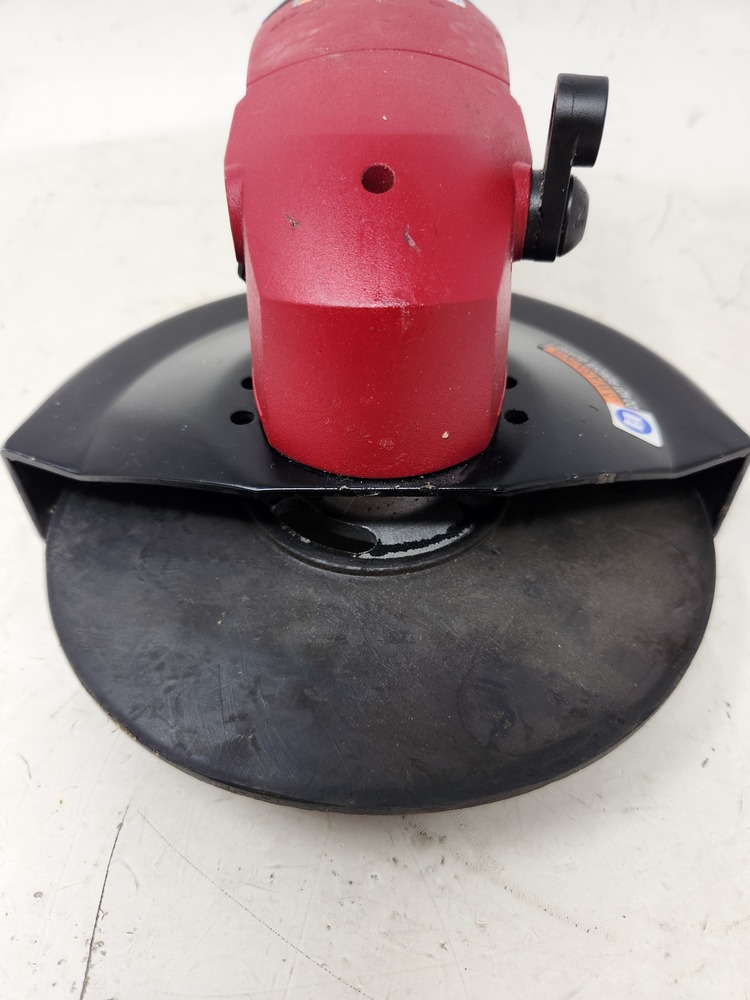

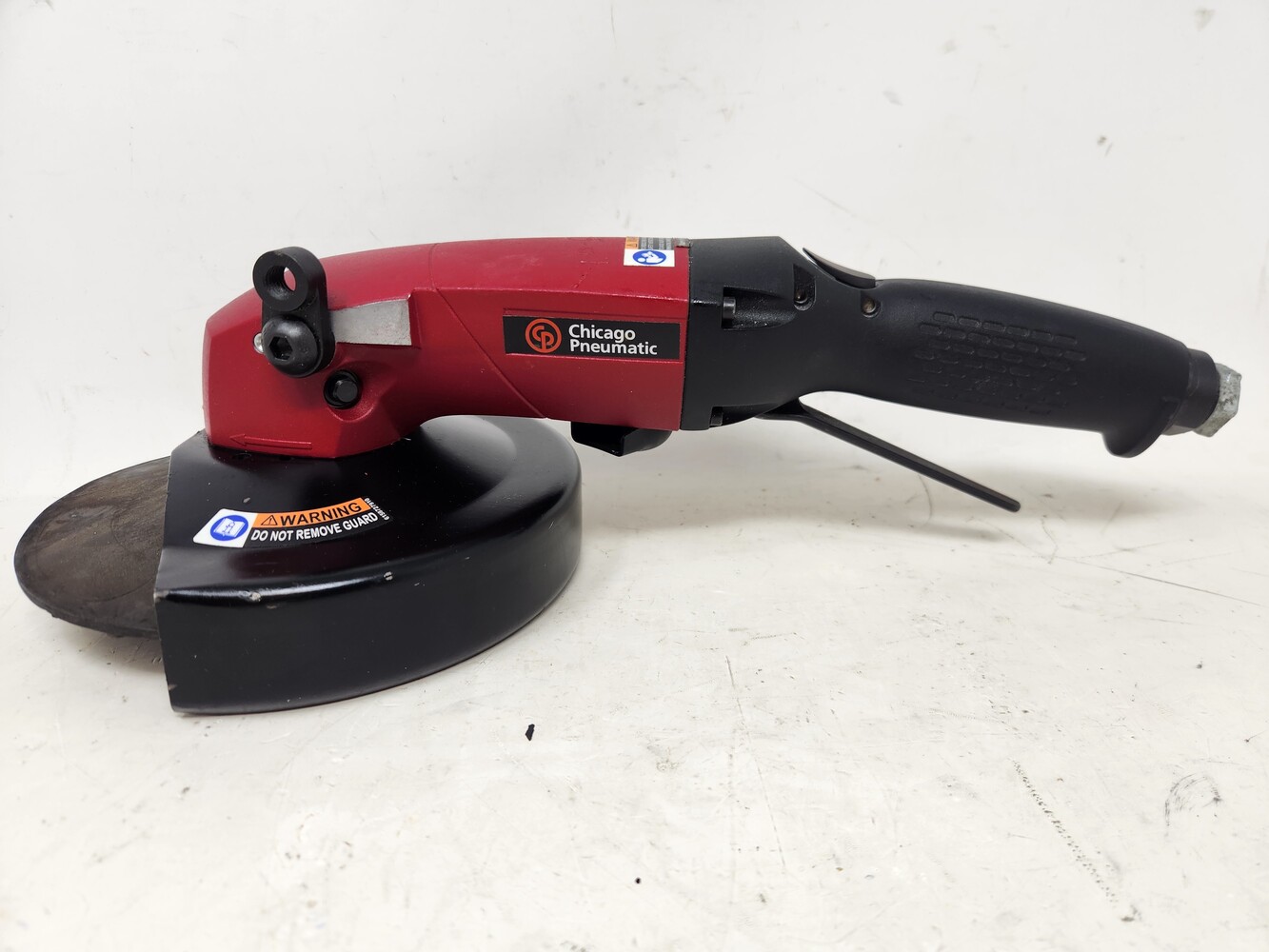

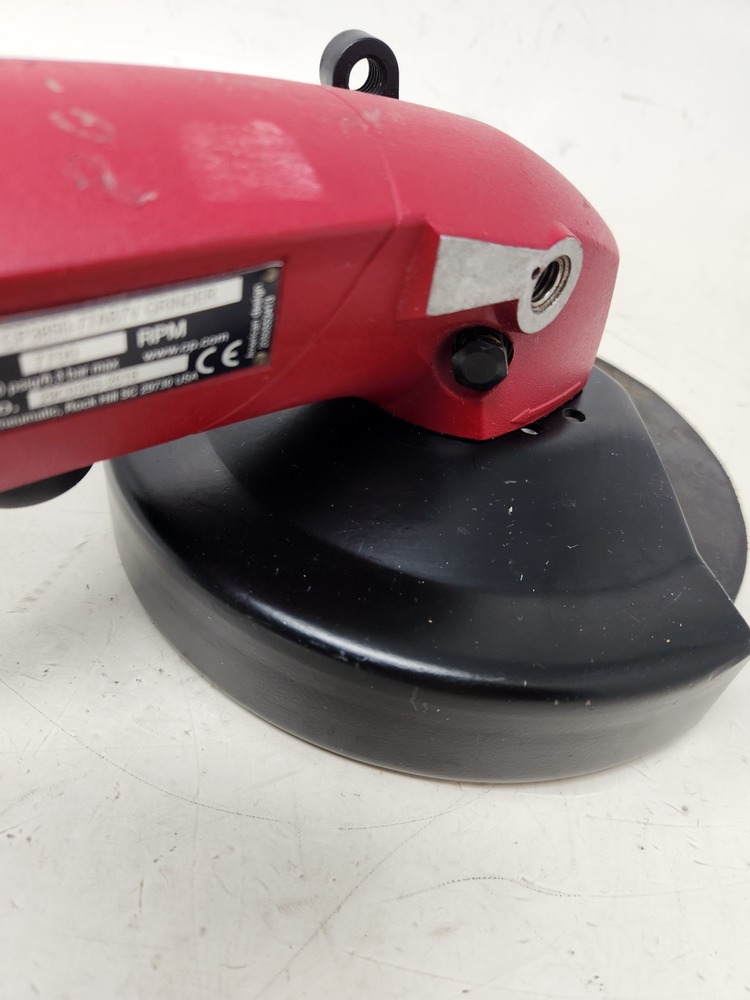

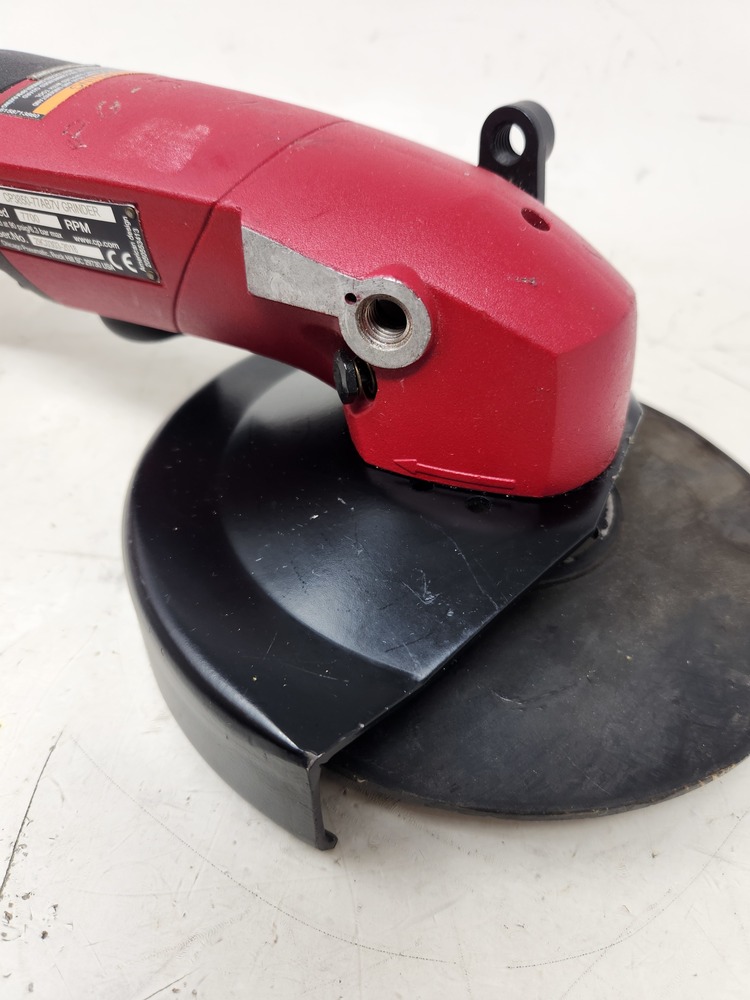

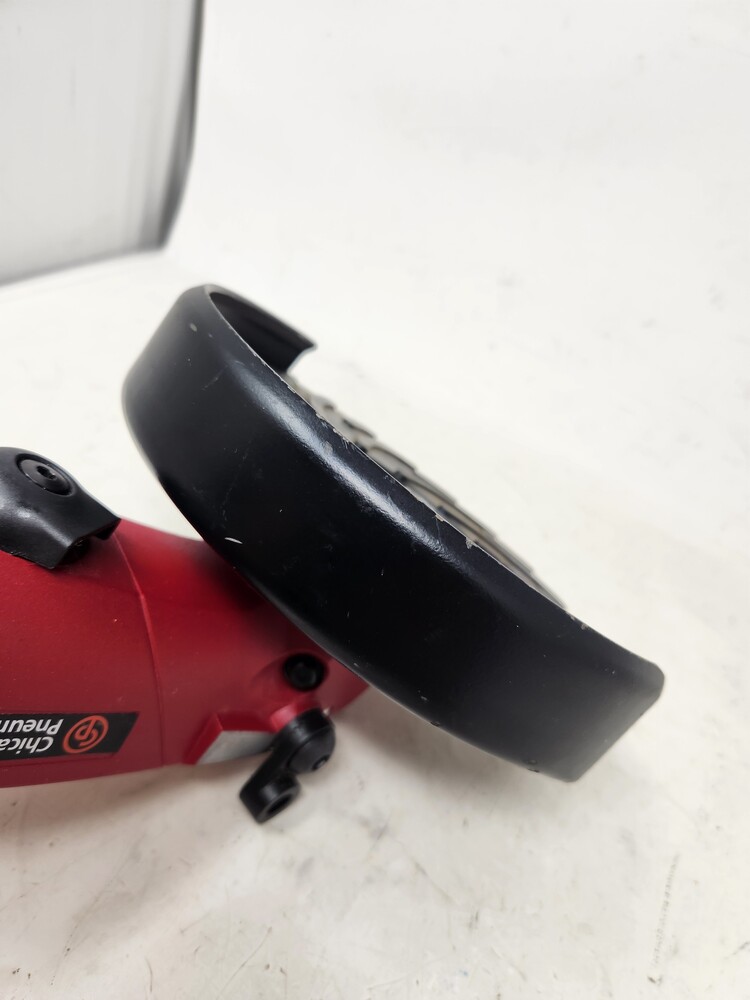

CHICAGO PNEUMATIC Angle Grinder: 7 in Wheel Dia, 2.8 hp Horsepower, 7,700 RPM Max. Speed, Heavy Duty

• Good preowned condition
• This item has been tested and is in good working condition

The CP3850 Series angle grinder is a rugged and durable tool with a regulated 2.8 hp (2100 W) motor and a free speed of 6,500 to 8,500 rpm. Designed for rough industrial use such as grinding, cutting, contouring, deburring, and weld cleaning, it offers ergonomic handling due to its curved design. A 360° exhaust muffler, a multi-position guard and a spindle lock button ensure comfort and safety. Available in 11-models for 7” and 9” wheels and pads. Possibility to select tools with 5/8-11' or Hex spindle thread.

Technical Specifications

Speed

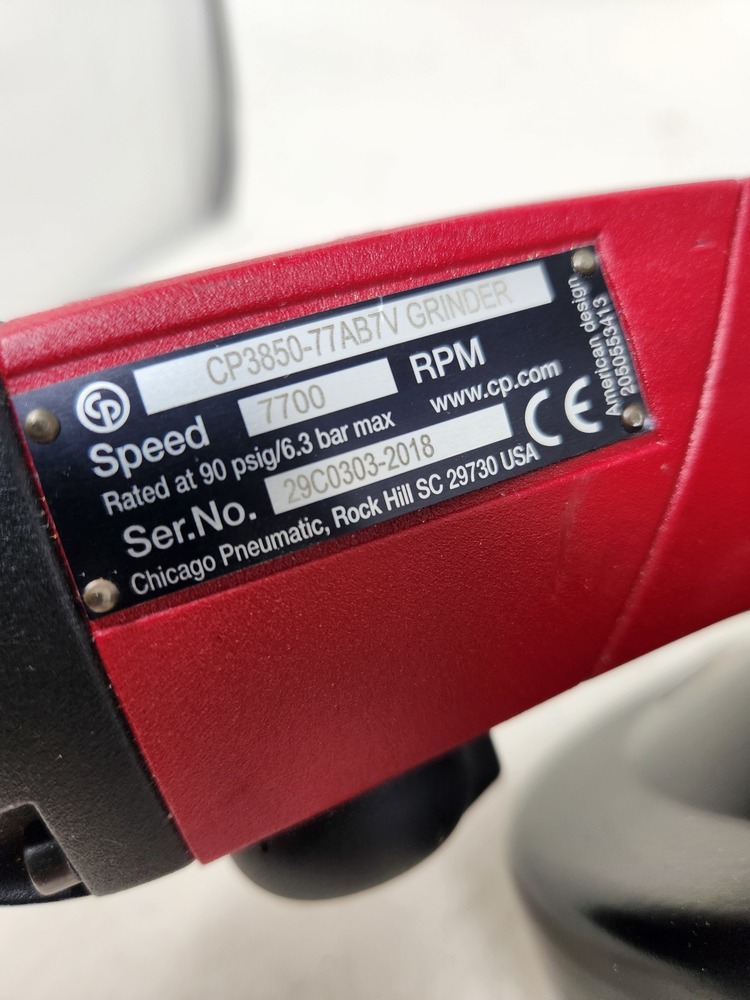

Free Speed: 7700 rpm

Air consumption at free speed: 33 cfm

Design & Functions

Autobalancer: No

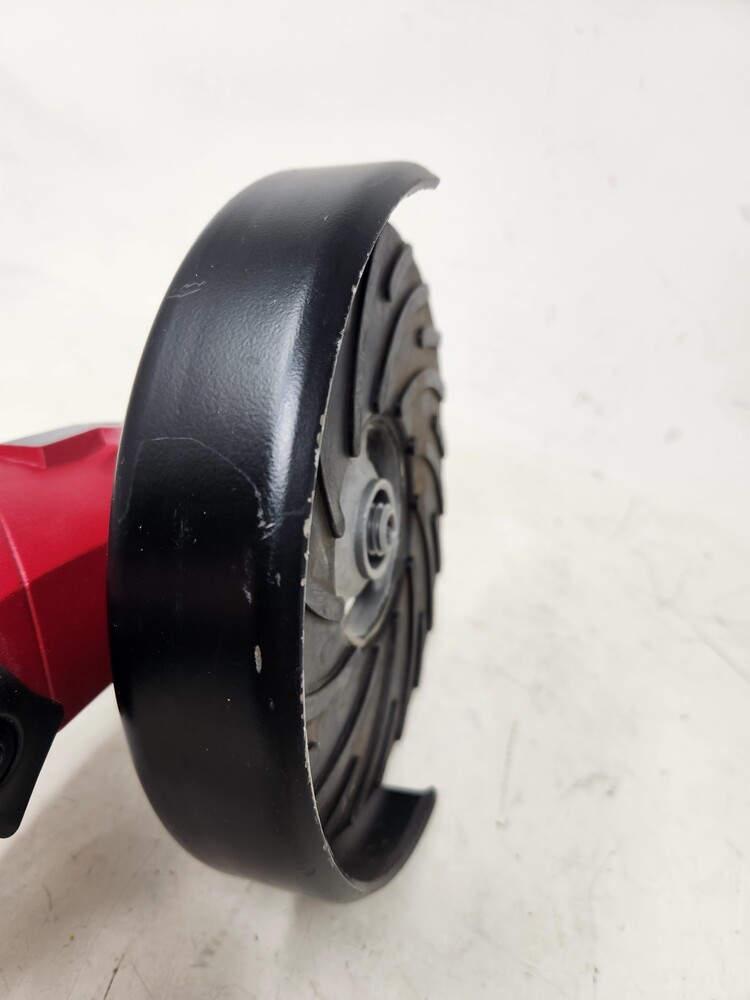

Guard max rotation: 150 °

Guard positions: 7

Main Material type: Aluminium

Output Spindle Thread: 5/8-11 UNC

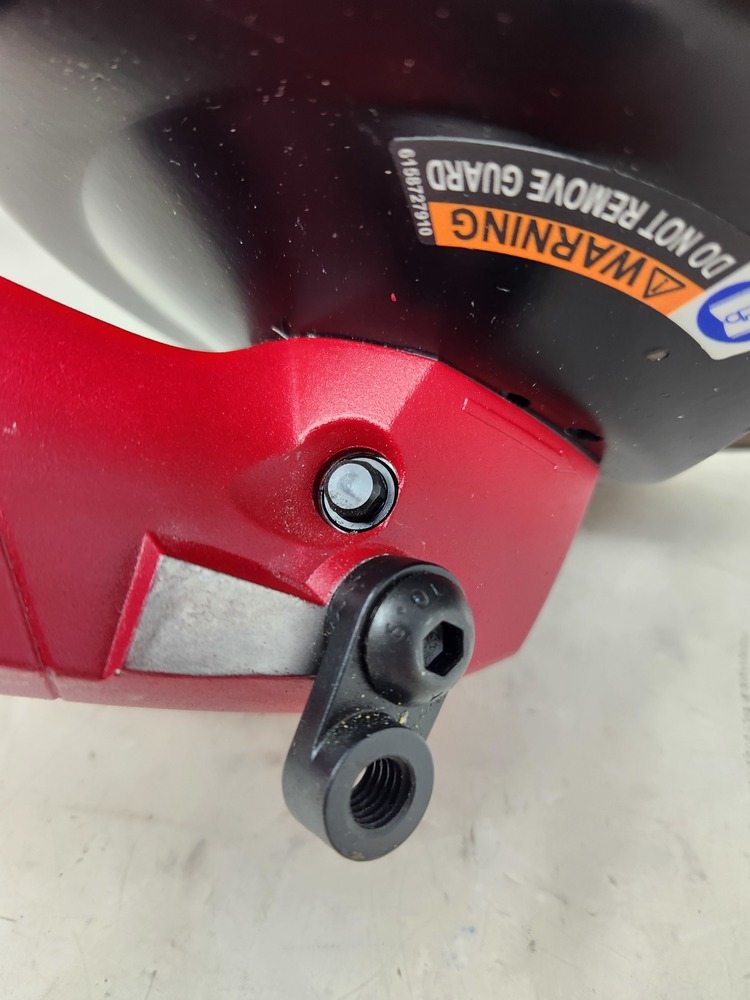

Rotative guard type: Screws

Spindle lock: Yes

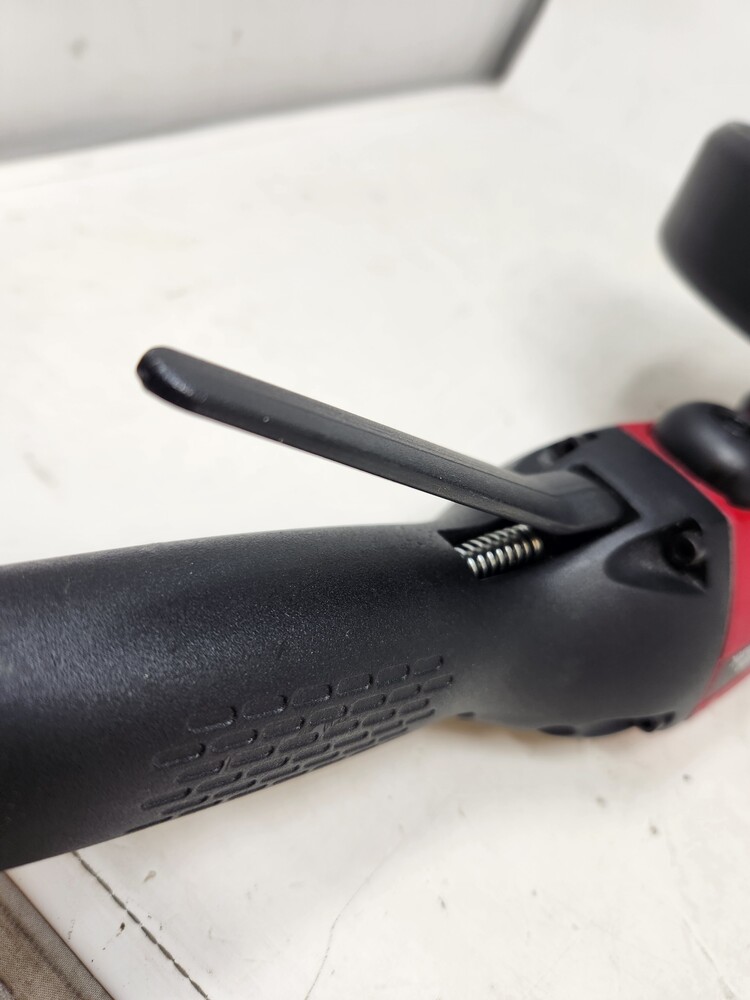

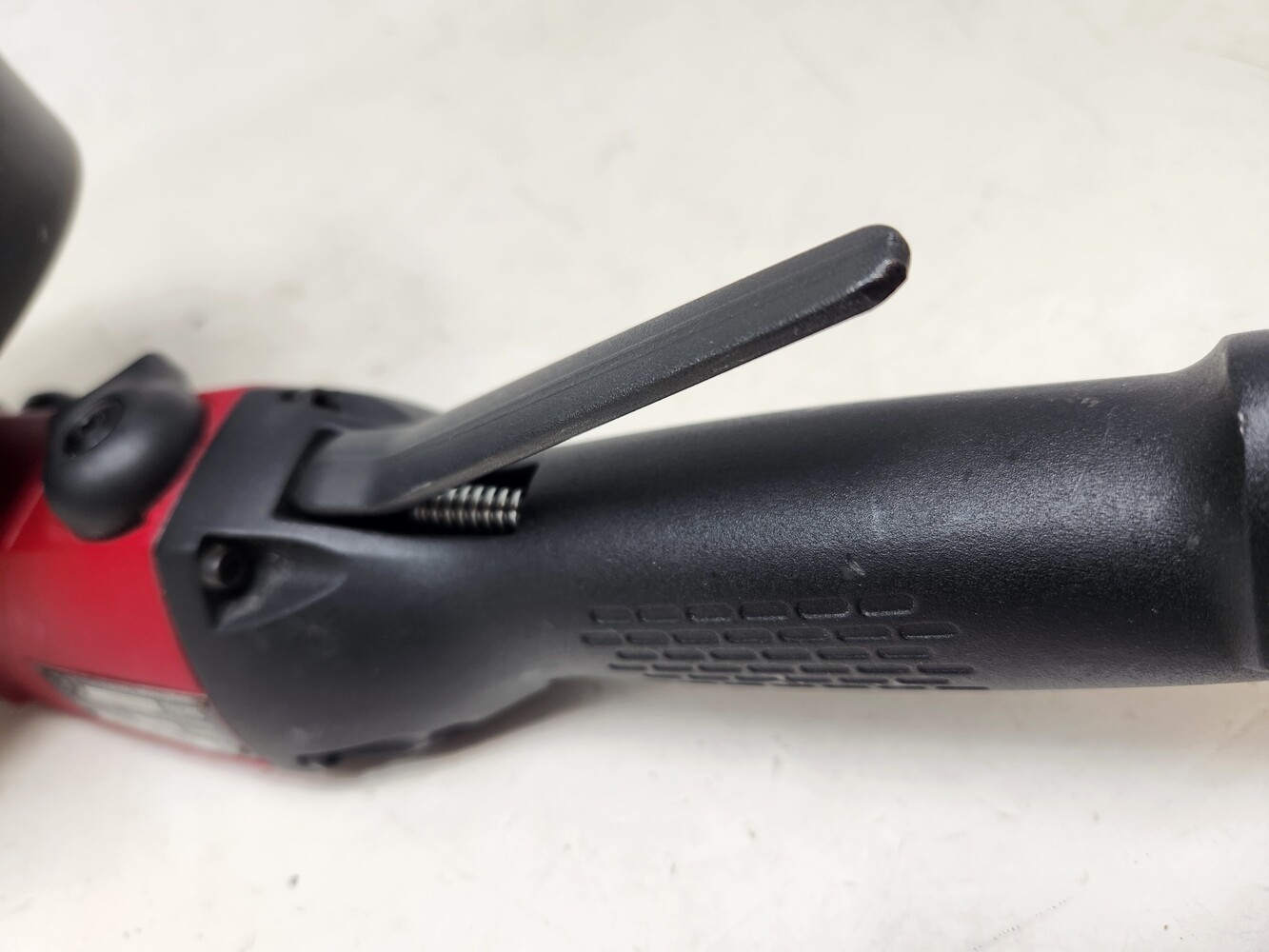

Starting system: Safety lever

Swiveling guard: Key

Wheel/Disc diameter (in): 7

Wheel/Disc diameter (mm): 180

Noise & vibrations

Sound Power: 95 dB(A)

Sound Pressure: 84 dB(A)

Uncertainty vibration-K: 3.6 ft/s²

Vibration: 17.4 ft/s²

Air information

Air consumption at load: 67 cfm

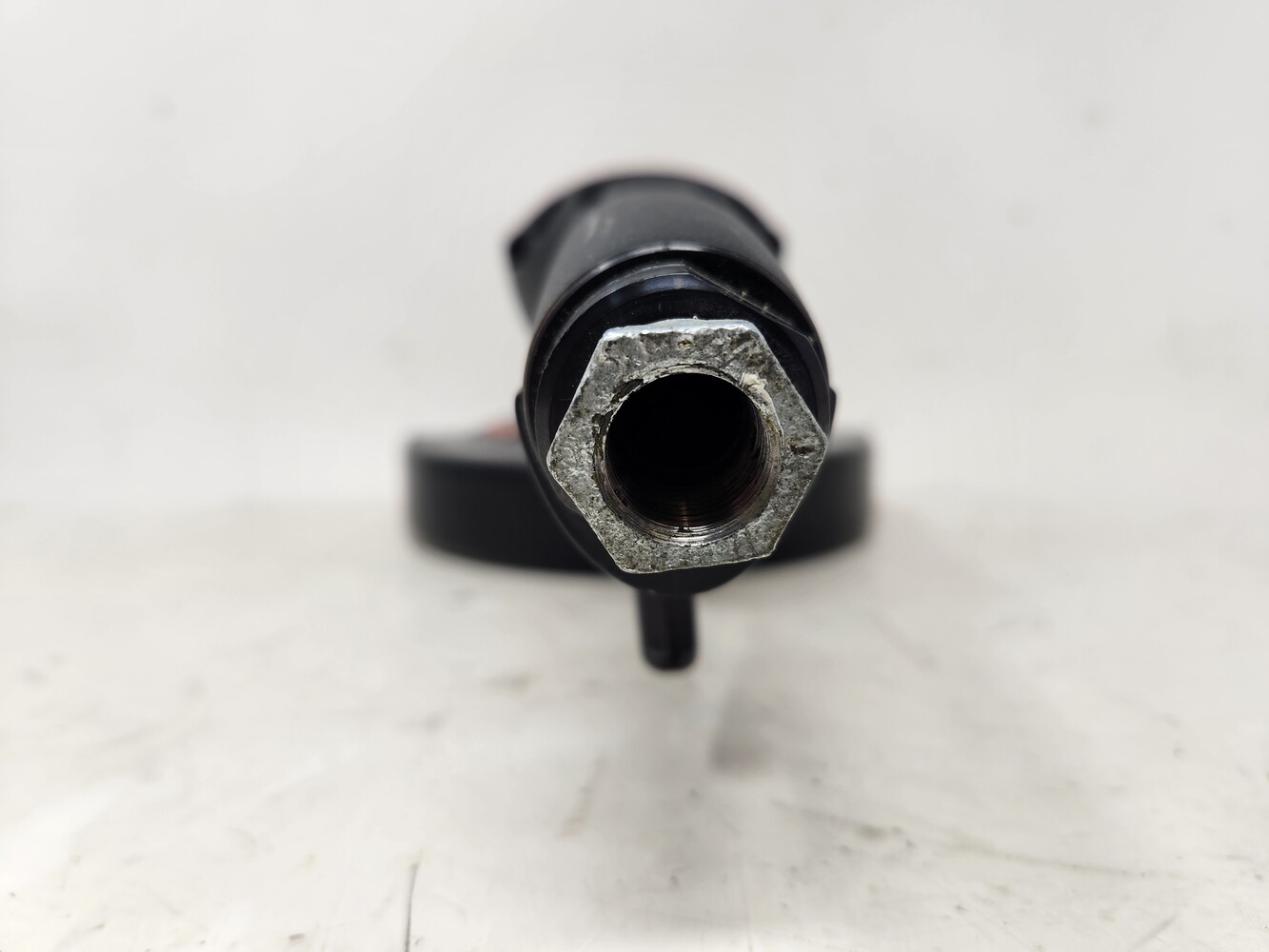

Air inlet thread size (in): 1/2

Air inlet thread type: BSP

Max dynamic air working pressure: 90 psi

Min hose diam (16 ft hose length): 0.63 in

Min hose diam (5 m hose length): 16 mm

Power

Max power: 2.82 hp

Size & Weight

Length (L): 13.39 in

Side to Center: 1.14 in

Weight: 6.61 lb
