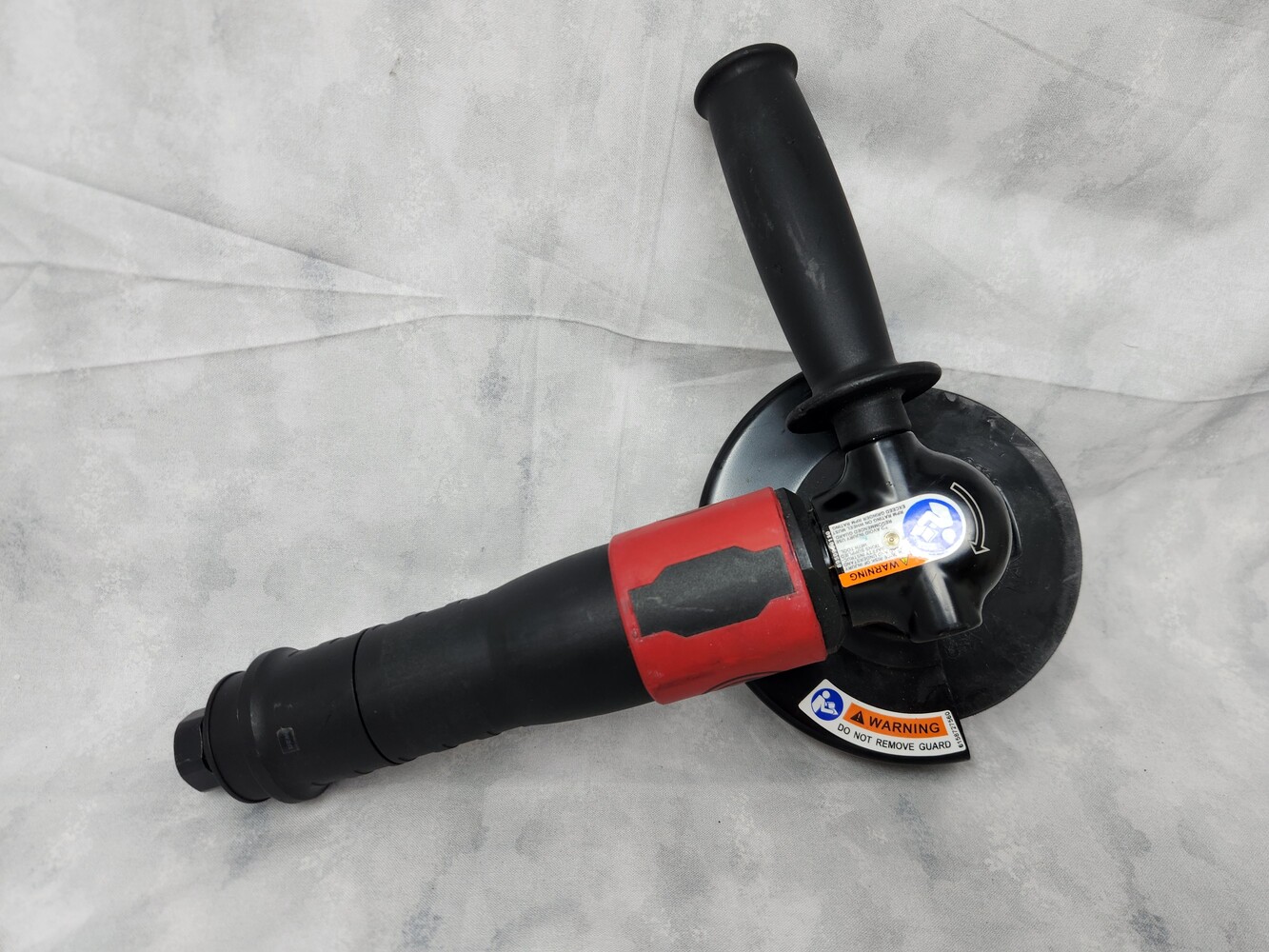

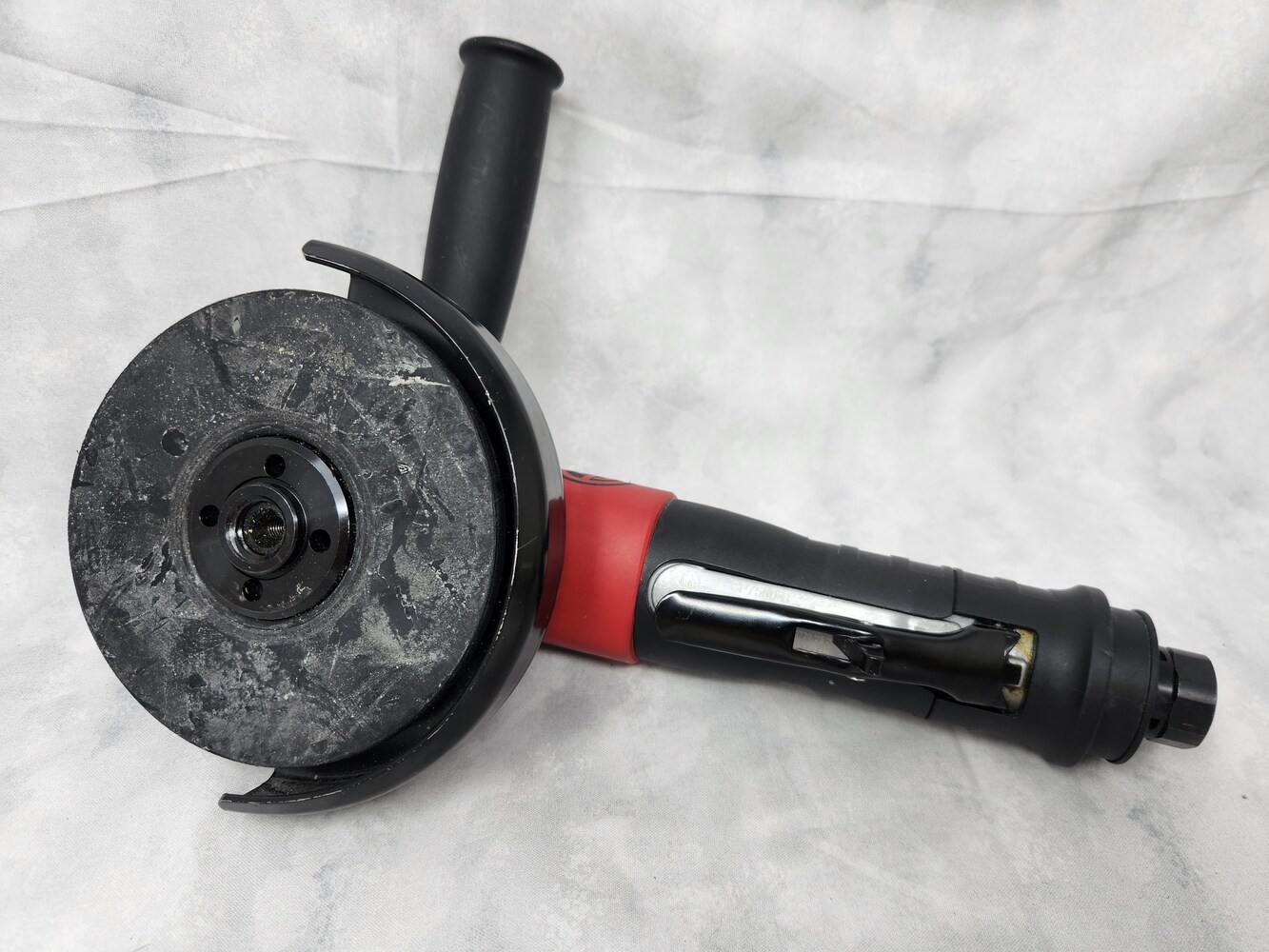

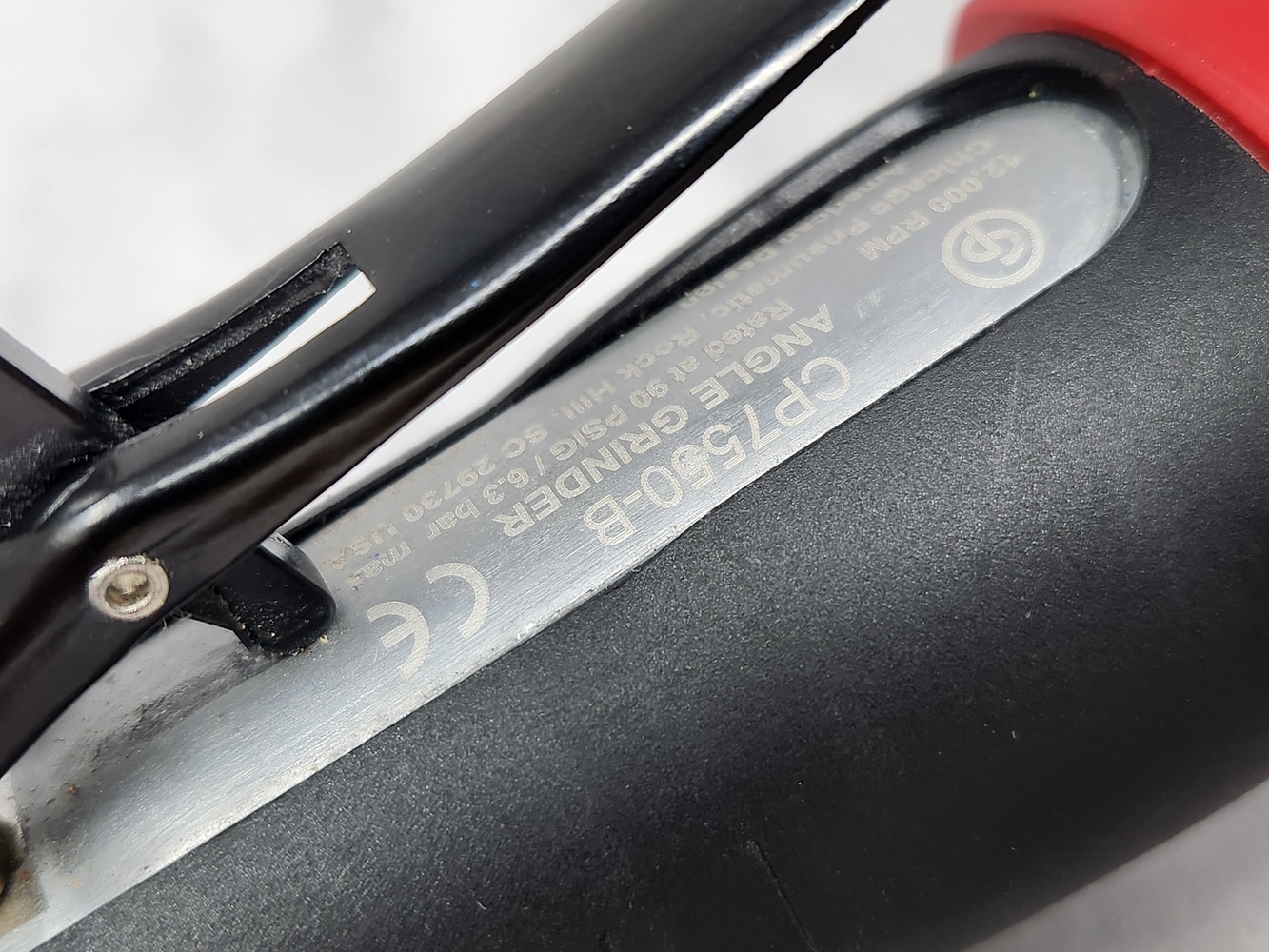

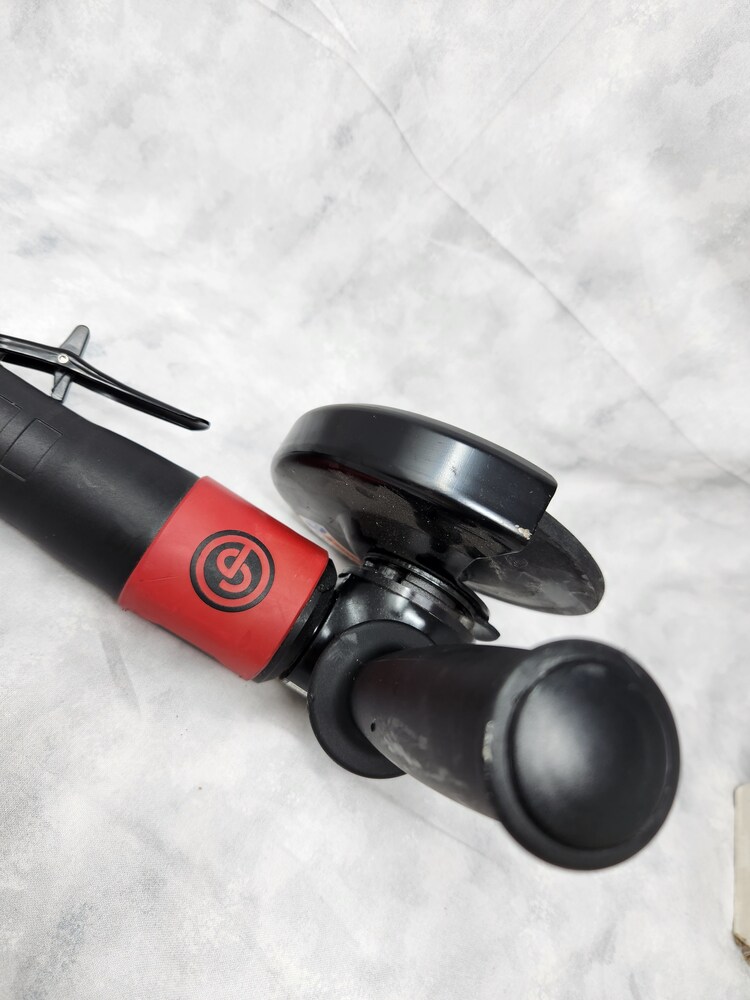

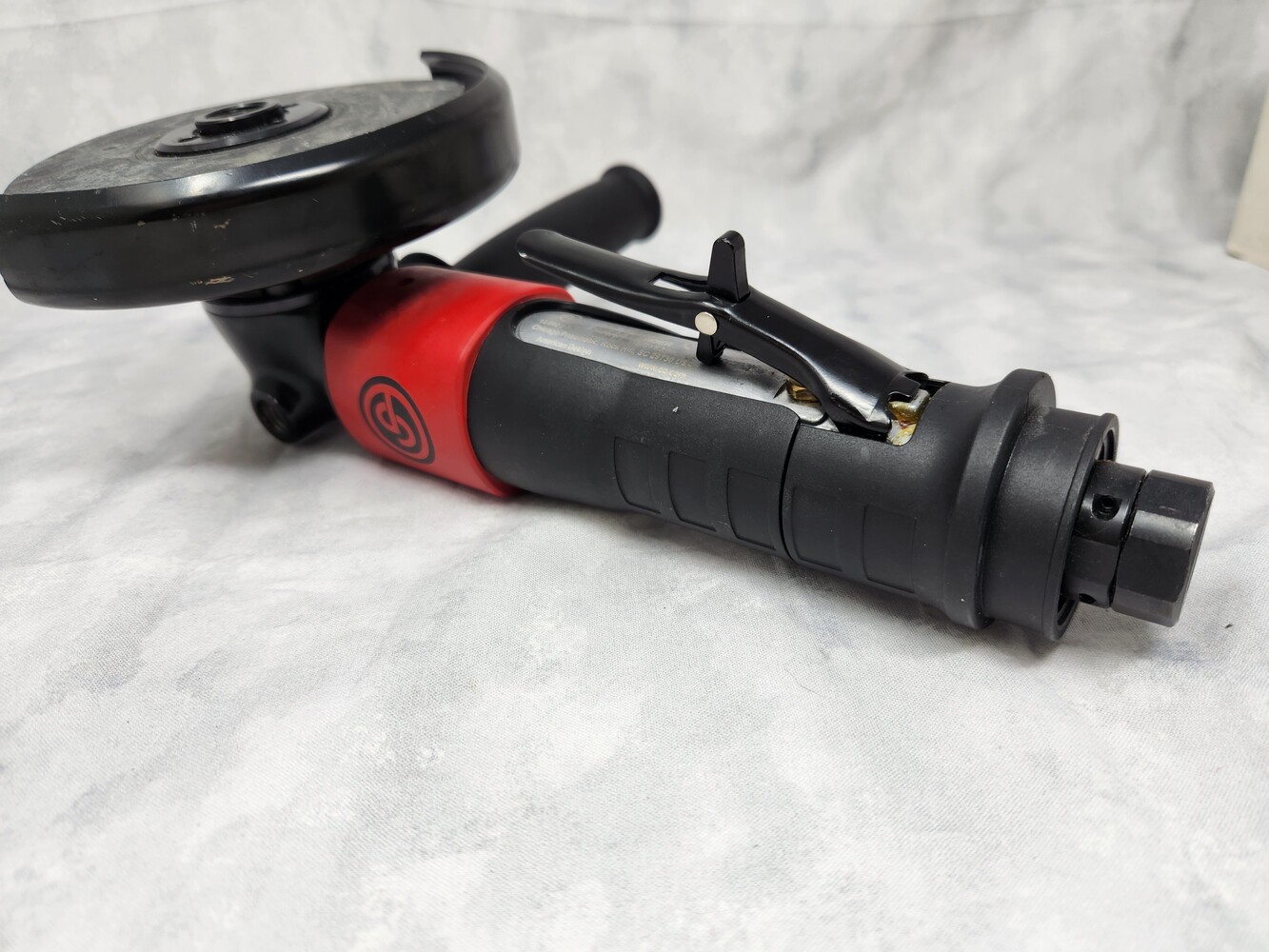

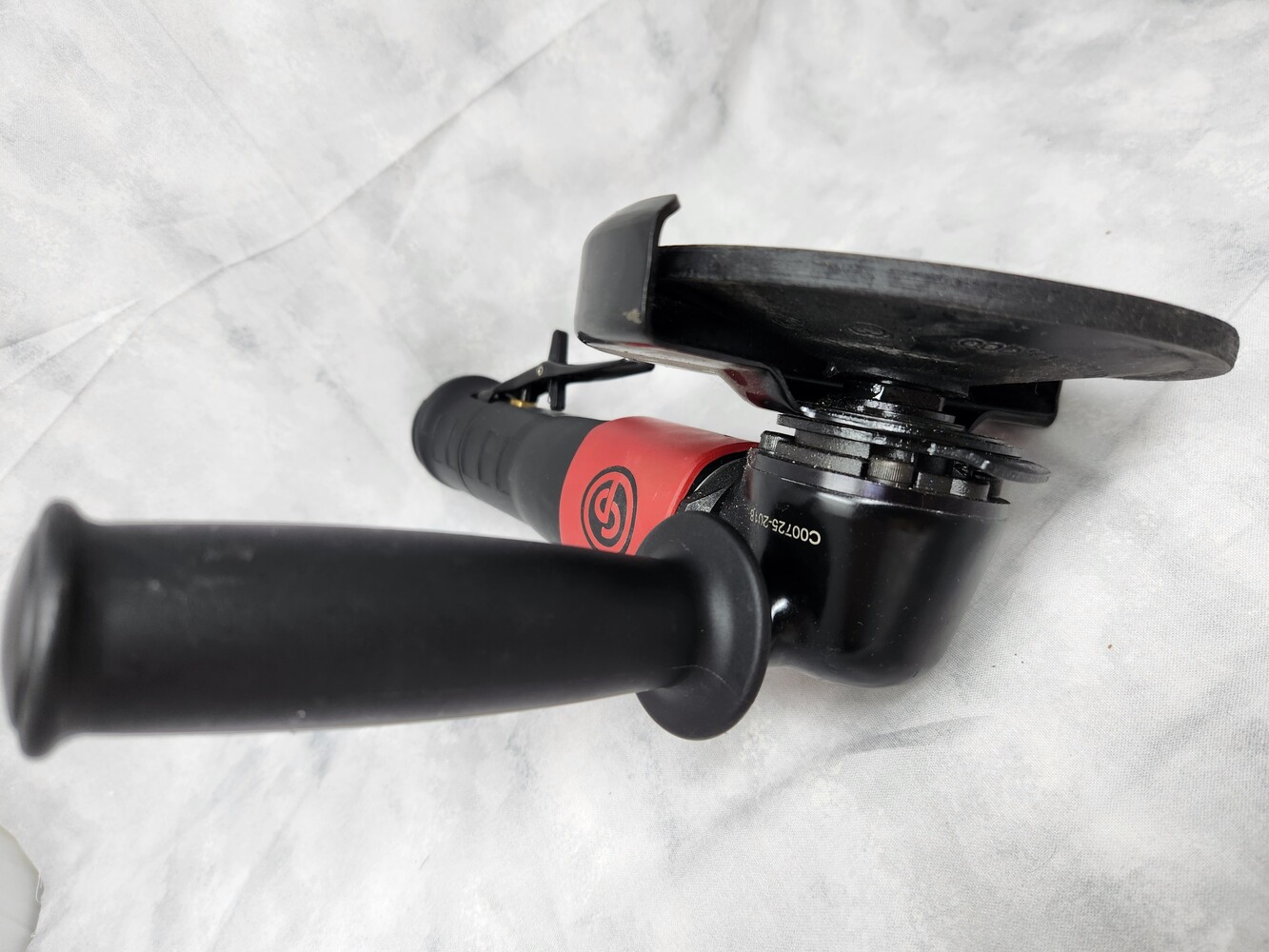

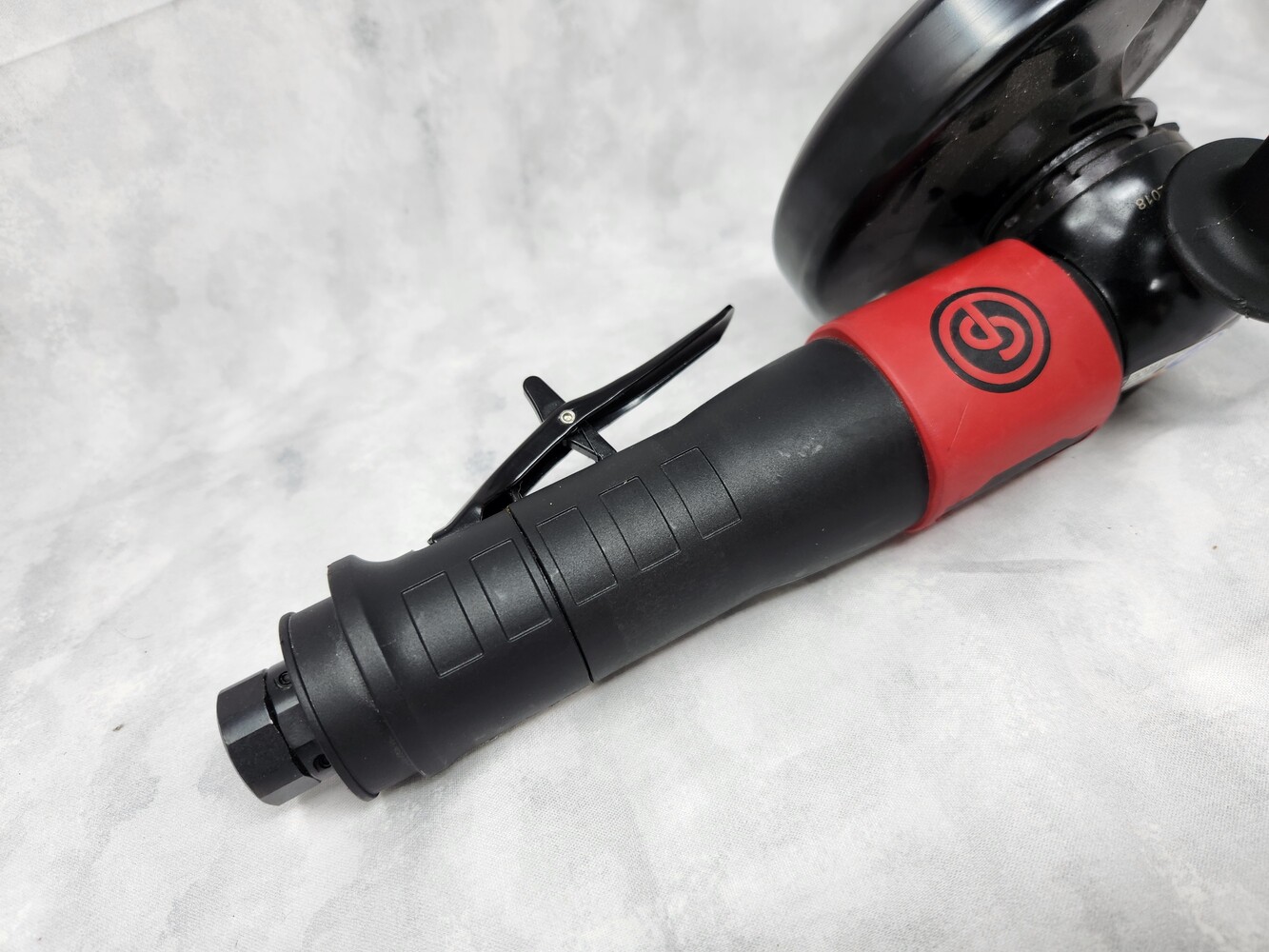

Chicago Pneumatic 5" Angle Grinder CP7550-B

• Very good preowned condition!

Designed for variety of applications such as sanding with flap discs, grinding, and cutting, this angle grinder series offers high efficiency with its power of 1.1 hp (840 W) and high durability with its high quality bevel gears and governed motor. The range consists of 7 models: 2x 4" wheel (3/8"- 24 spindle thread), 2x 4.5" wheel (3/8"- 24 & 5/8"- 11 spindle thread) and 3x 5" wheel (M14 & 3/8"- 24 & 5/8"- 11 spindle thread).

Technical Specifications

Speed

Free Speed:12000 rpm

Air consumption at free speed: 19 cfm

Noise & vibrations

Sound Power: 96 dB(A)

Sound Pressure: 85 dB(A)

Uncertainty vibration-K: 6.9 ft/s²

Vibration: 23 ft/s²

Design & Functions

Autobalancer: No

Guard positions: 0

Main Material type: Aluminium, Composite over-sleeve

Output Spindle Thread: 5/8-11 UNC

Rotative guard type: Lock

Spindle lock: No

Starting system: Safety lever

Swiveling guard: Keyless

Wheel/Disc diameter (in): 5

Wheel/Disc diameter (mm): 125

Air information

Air consumption at load: 40 cfm

Air inlet thread size (in): 1/4

Air inlet thread type: NPT

Max dynamic air working pressure: 90 psi

Min hose diam (16 ft hose length): 0.38 in

Min hose diam (5 m hose length): 10 mm

Power

Max power: 1.13 hp

Size & Weight

Length (L): 10.63 in

Weight: 3.53 lb
